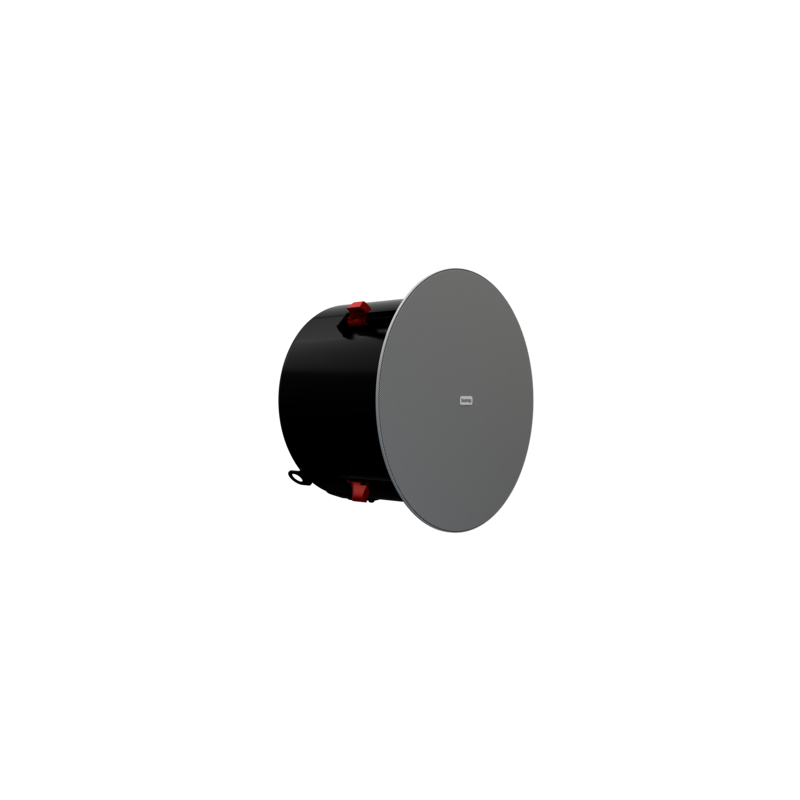

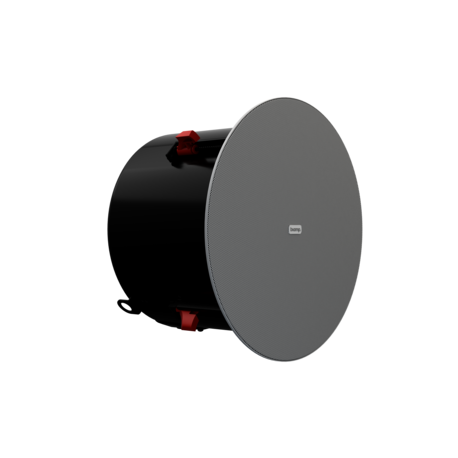

Desono DX-IC8-W

The Desono DX-IC8 rewrites the cost-to-performance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC8 exceeds the performance of competing high-ceiling models. Foreground music, high-level paging, and augmentation of large music systems as a delay or fill speaker in ancillary zones are all within the capability of this versatile performer. It is ideal for high ceiling applications.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC8 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC8 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

GENERAL
Depth 8.51 inches (216 mm)
Diameter 13.43 inches (341 mm)
Cutout Diameter: 12.20" (310 mm)
Weight 15.6 lbs (7.08 kg)
Finish RAL Color: White RAL 9016
ENVIRONMENTAL
Operating Environment Indoor
POWER
Power 175W Cont.
700W Peak

LOUDSPEAKER
Loudspeaker Type Two-way 8-inch ceiling loudspeaker
Operating Range 75 Hz - 20 kHz
Transformer 70V: 120W, 60W, 30W, 15W
100V: 120W, 60W, 30W
Sensitivity (1W/1m) 93 dB
Dispersion 115° conical
Drivers LF 1 x 8"
HF 1 x 1.25"
AUDIO
Impedance 7Ω
Maximum Output Max Output @1m: 116 dB
126 dB Peak
CERTIFIED SOLUTIONS
Zoom Zoom Certified
COMPLIANCE
Certifications UL1480, UL2043, CSA62368-1, NFPA70, NFPA90
