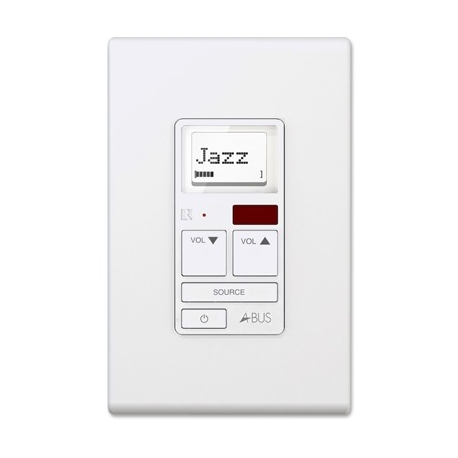

Russound A-K6L - A-BUS Amplified LCD Keypad

Więcej szczegółów

A-BUS Amplified LCD Keypad A-K6L

Available colors: White Light Almond Almond Bone Brown Black

The A-K6L amplified keypad features an LCD panel and extensive audio and system settings. Its digital amplifier provides more power than previous analog A-BUS keypads.

The A-K6L's display panel and backlit buttons have white backlighting, with an option to turn the backlight off. The display shows source name and zone volume, and the keypad's status indicator shows you when the system is on. A built-in IR receiver with LED confirmation responds to commands from remote controls and a zone specific favorite round out the main features of this keypad.

Compatible with the Russound A-C68 controller, the A-K6L includes an All Off feature that turns all zones off. It also can turn all zones on for Party mode.

An Options menu in the A-K6L gives you complete control of zone audio settings, including bass, treble, balance, loudness, and turn-on volume. It also allows selection of backlight color, Party mode enable, and page volume.

The A-K6L includes a line-level output for connection to a subwoofer or external power amplifier. It also includes a connector for attaching an A-KSC2 accessory keypad for direct control of your sources.

Standard Features

  • Digital amplification for robust sound
  • LCD panel displays source name and volume level
  • All On/Party mode and paging settings (with A-C68 controller only)
  • Line output connection for external amplifier or subwoofer




Product Dimensions

3.0" (W) x 4.5" (H) x 2.5" (D)
(7.6 x 11.4 x 6.4 cm)


Shipping Weight

0.0 lbs (0.0 kg)


Audio Input Impedance

30 Kohms


CAT-5e Connection

RJ-45 jack, T568A standard



Power on / off
Source select (with multisource hub)
Volume up / down



5-character LCD panel with source and volume indication



System status LED (green)
IR confirmation LED (red)


IR Control

Built-in IR receiver with pass-through


Line Output

Variable line level, stereo


Max Cable Length

150 feet (46 m)


Power Requirement(s)

24 VDC 1050 mA peak


Speaker Connection(s)

Screw terminal connectors
Accept up to 16 AWG (1.5 mm) wire


Speaker Impedance 8 ohms per channel
