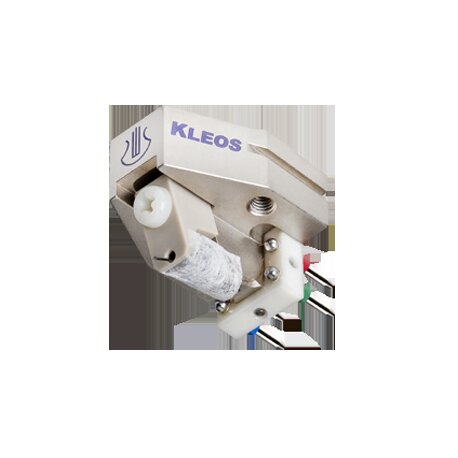

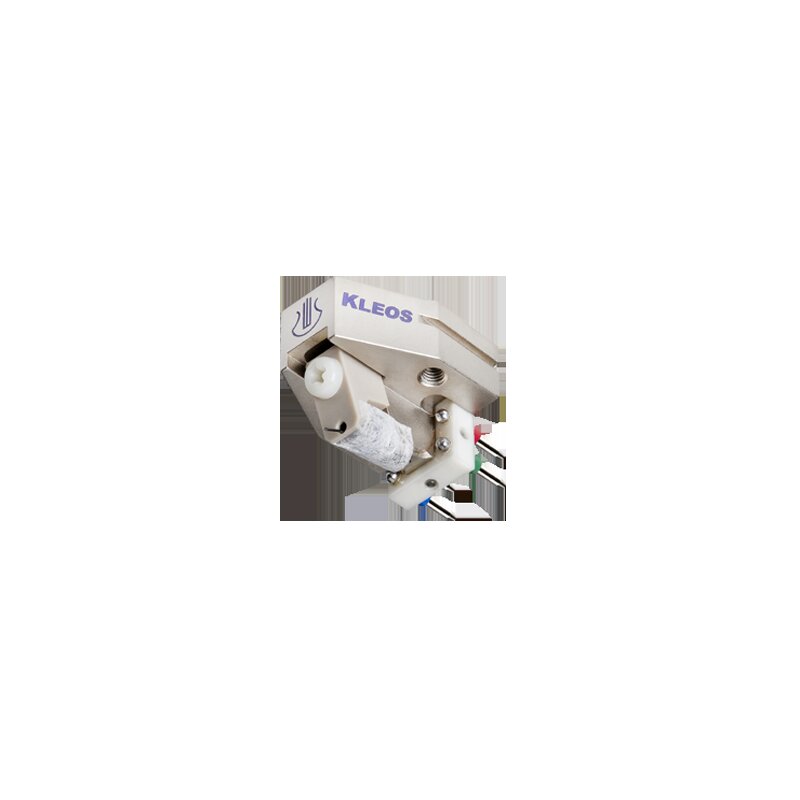

LYRA KLEOS SL

This is a special, built-to-order, version of Kleos for expert users with very high-gain, extra low noise phono stages, or alternatively a step-up transformer designed for phono cartridges of 2 - 3 ohms or less.
Most users (and phono stages) will benefit from the regular Kleos with much higher output and considerably more energy; resulting in a much better signal-to-noise ratio. If you are in doubt about which version of Kleos that will work best in your system, please go with the regular Kleos.
The Kleos SL may provide extra pure and pristine sound from an audio system that is optimized for a low-impedance, low-output cartridge. However, this may be accompanied with a lesser level of energy and power.
Lyra nevertheless has decided to offer SL models, as built-to-order at a 10% surcharge, for those who are confident that they can extract the benefits from such a low-output MC phono cartridge.

SPECIFICATIONS FOR KLEOS SL
• Designer: Jonathan Carr
• Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (preliminary build)
• Type: Medium weight, medium compliance, low-impedance, low-output moving coil cartridge
• Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um profile, block dimensions 0.08 x 0.12 x 0.5mm), slot-mounted
• Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
• Coils: Single layer, 6N high-purity copper, square-shaped chemically-purified high-purity iron former, 2.7ohms self-impedance
• Output voltage: 0.25mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
• Frequency range: 10Hz ~ 50kHz
• Channel separation: 35dB or better at 1kHz
• Compliance: Approx. 12x10-6cm/dyne at 100Hz
• Vertical tracking angle: 20 degrees
