Apart BIAMP P6

Stan techniczny: Nowy produkt

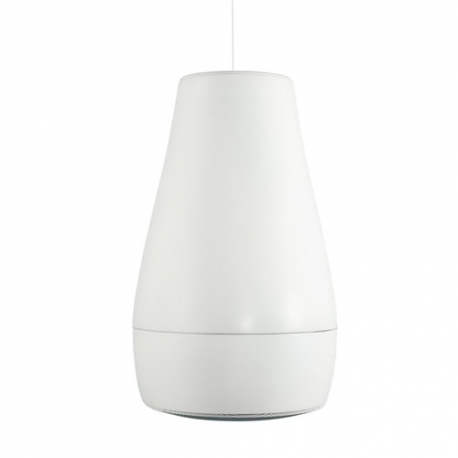

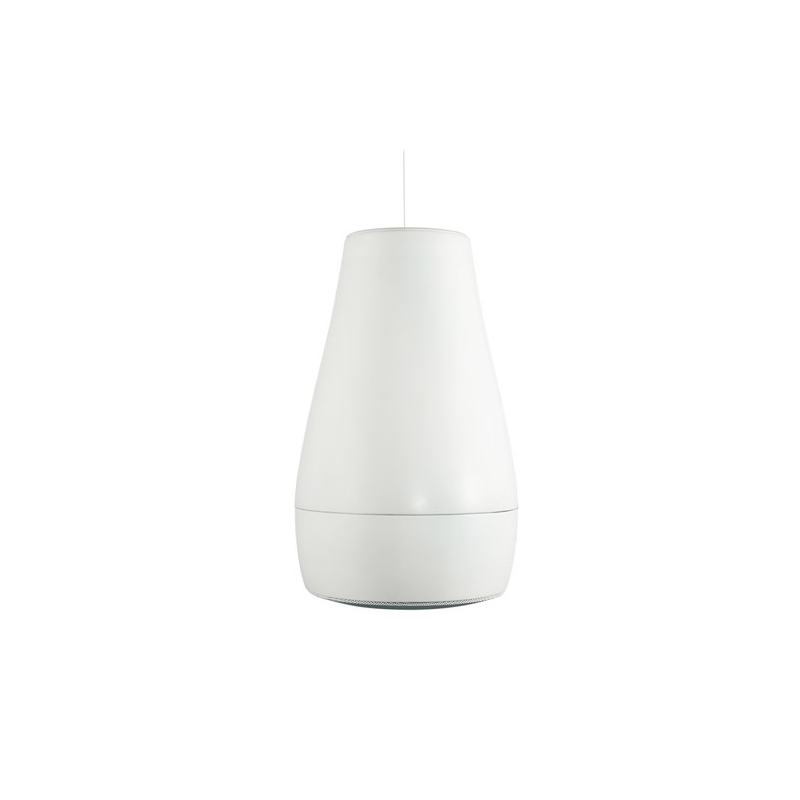

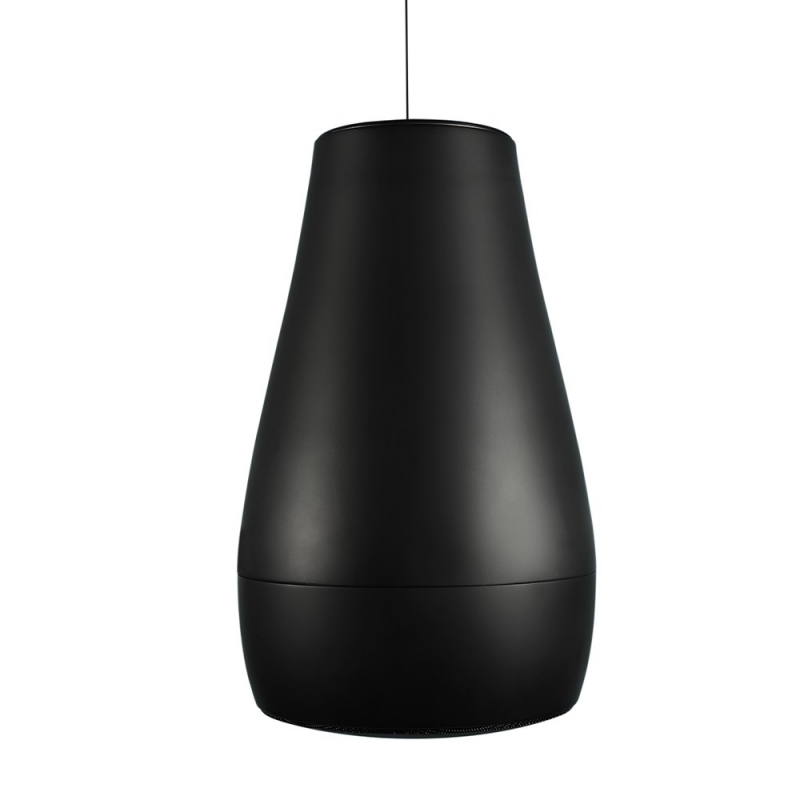

Apart BIAMP P6 - Głośnik wiszący

Zestaw głośnikowy sufitowy zwieszany, przetwornik 6,5", do stosowania wewnątrz i na zewnątrz, osłona w kolorze białym, kształt wąski

• 6.5" Polypropylene cone Woofer, 1" Soft dome Tweeter

• Stylish "raindrop" profile; 90° Conical dispersion angle

• IP54 rated for outdoor splash applications such as patios or concourses

• 70/100V Tap settings: 1.875W (70V only), 3.75W, 7.5W, 15W, 30W, 60W, 6 ohm (Bypass)

Specifications

Operating Mode	Passive with DSP
Operating Environment	Indoor/Outdoor (splash applications only)
Operating Range	75 Hz to 18.5 kHz (-10dB)
Nominal Beamwidth (H x V)	90°, conical
Transducers	LF 1 x 6.5" (165 mm) polypropylene cone HF 1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance	Passive	19V	60W @ 6 ohms (240W peak)
Nominal Sensitivity @ 1m	Passive	@ 1W 86 dB	@ 2.83V 88 dB
Nominal Maximum SPL @ 1m	Passive	Peak 110dB	Continuous 104 dB
Transformer	70V: 60W, 30W, 15W, 7.5W, 3.75W, 1.875W 100V: 60W, 30W, 15W, 7.5W, 3.75W
Required Accessories	80 Hz, 12dB/Oct high pass fllter
Recommended Amplifiers	60W - 120W @ 6 ohms (19V-27V)
PHYSICAL
Input Connection	Pre-terminated inside housing
Control	Wattage / low impedance selector switch
Mounting Provisions	Two pre-terminated aircraft cables (one as primary support, one as a safety cable), and Griplock cable fasteners 4.3 m of pre-terminated Magic Cable
Dimensions H x Dia.	397 mm x 238 mm
Weight	5.0 kg
