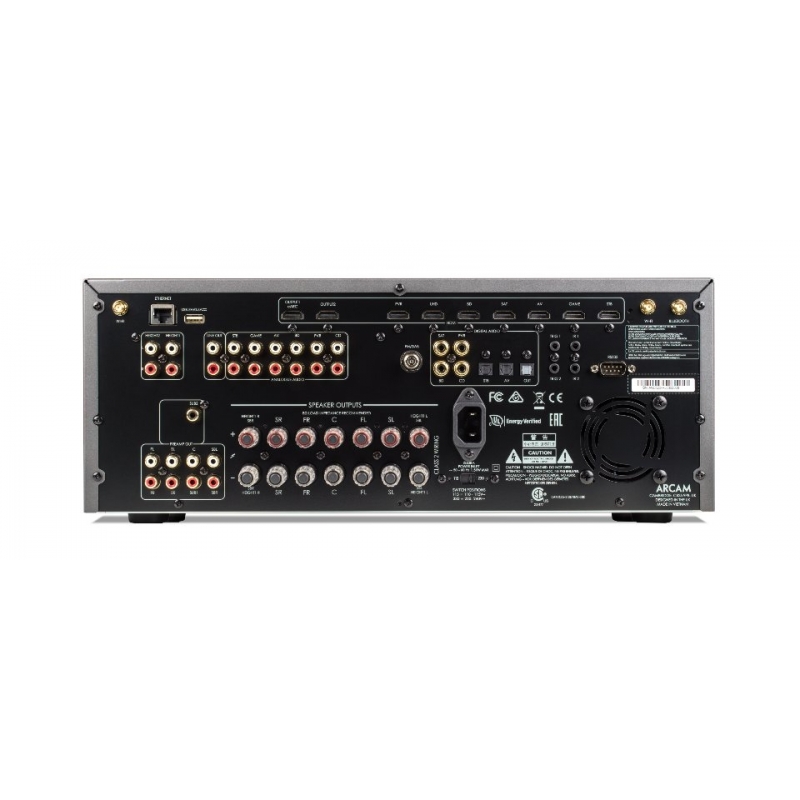

Arcam AVR5

Polski opis wkrótce

Rich Musicality + Immersive Sound = Stunning Realism

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.

The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.

PRODUCT DETAILS

• Dolby Atmos & DTS:X 7.1.4 decoding
• 4K (UHD) HDMI2.0b with HDCP2.2
• 7 HDMI inputs, 2 HDMI outputs, eARC compatible
• Ready for Dirac Live® room correction
• ESS 9026PRO audiophile DACs
• Class AB power amplification
• Uses frame-type transformer
• Wifi / Ethernet, RS232 and IR control
• Apple Airplay2 and Google Cast for streaming audio
• Bluetooth aptX®HD
• Free MusicLife iOS and Android UPnP streaming app
• Supports MQA
• Roon Ready

Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD 60W/85W

Residual noise & hum (A-wtd) <0.15mV

Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB

Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω

General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 16.5kg
Weight (packed) 19.8kg
Supplied accessories Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
EAN 6925281997372
