Stealth Acoustics Image - Głośniki naścienne w formie obrazów

Więcej szczegółów

Image Series

TWO-WAY CUSTOMIZABLE ON-WALL LOUDSPEAKER

Stealth Acoustics has reconfigured it’s award-winning invisible speaker technologies and installed them into a thin, on-wall speaker package, with a completely flat-front radiating surface that can be finished in a wide array of options;

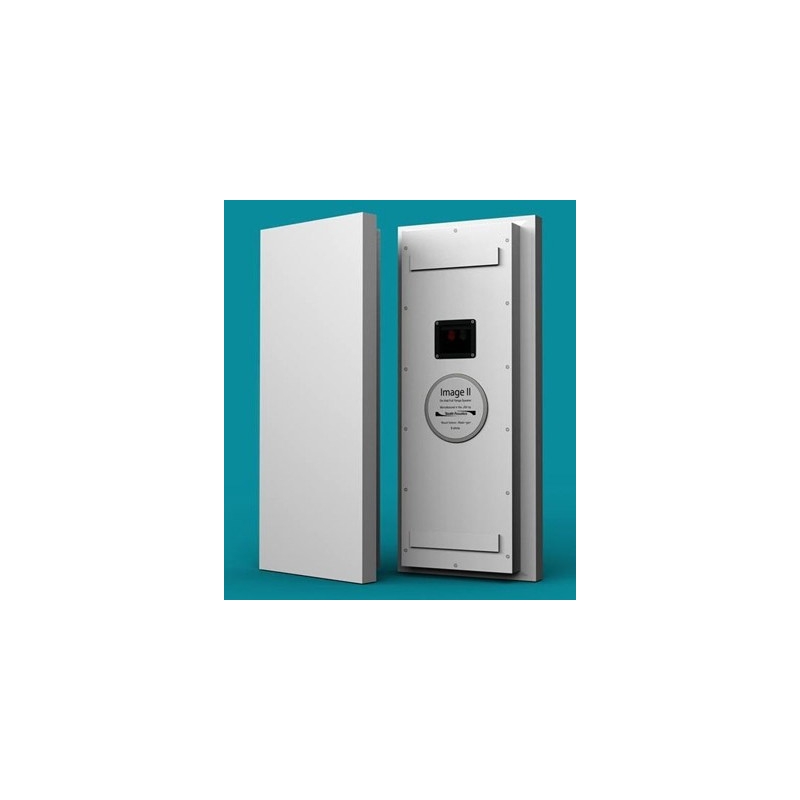

The Satin White Image III can be mounted right out of the box or finished in the field to match virtually any décor imaginable.

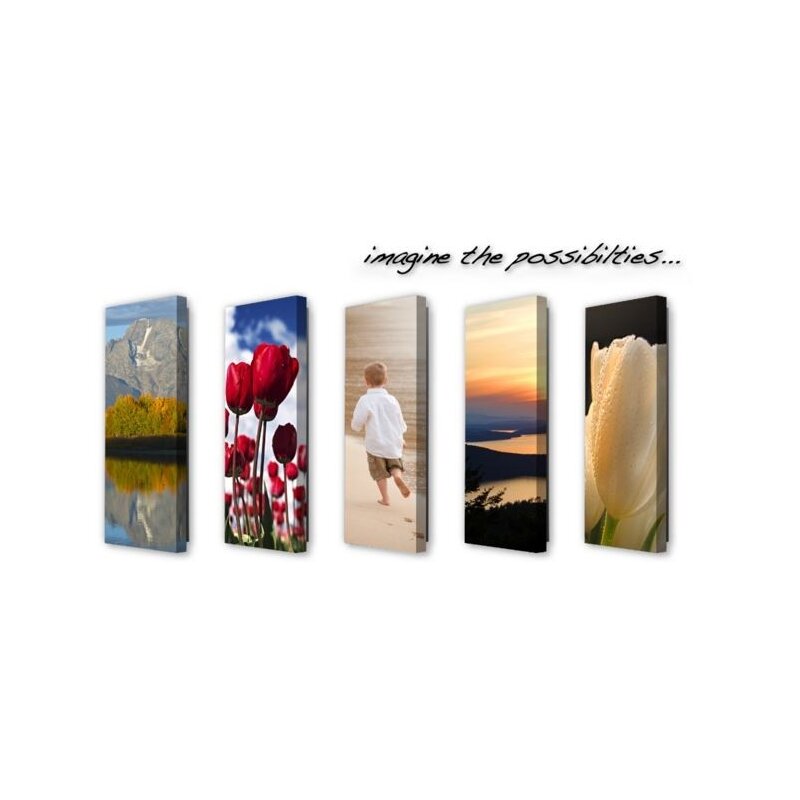

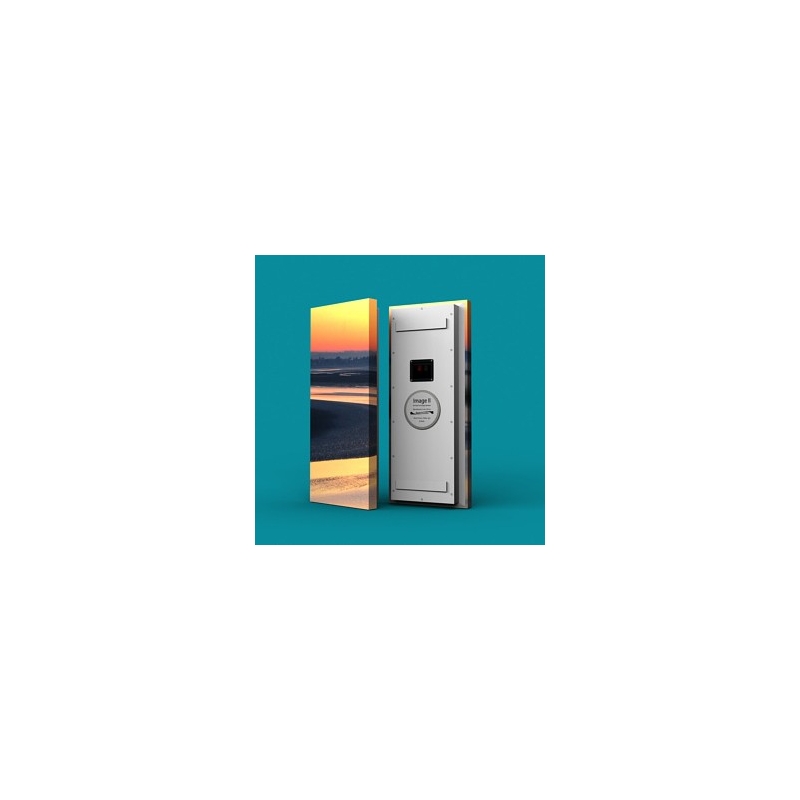

The Image Wrap™ model includes high resolution images (from our artist gallery or customer provided) that are factory laminated to the speaker face in a “studio wrap” style that turns the speaker itself into a work of art.

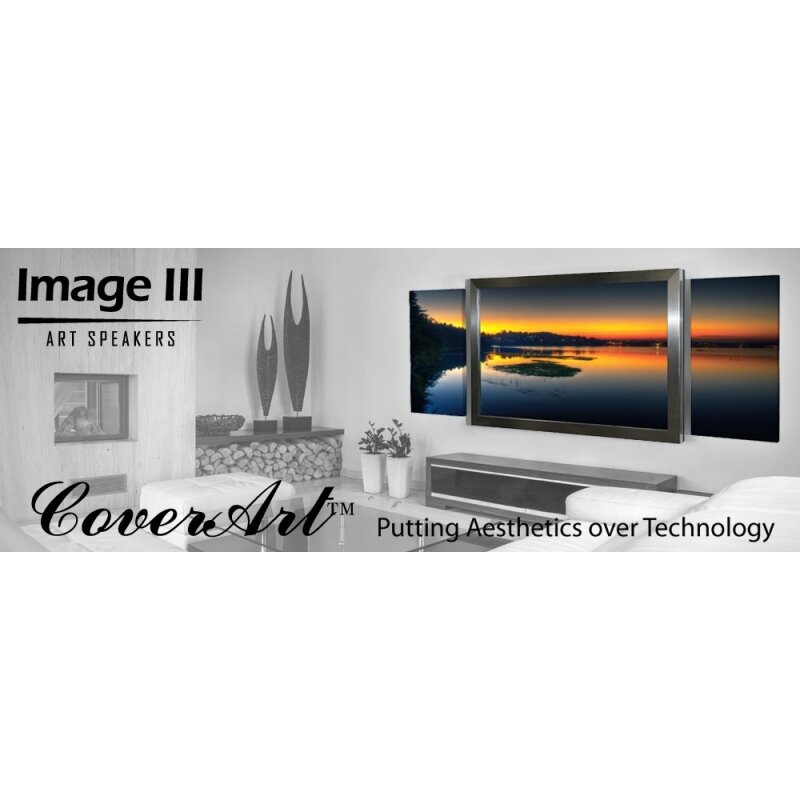

For a truly sweeping scene, select The Trilogy™. This option combines the freshly updated CoverArt with a pair of Image III speakers for an awesome panoramic three panel spread. No other on-wall speaker gives you this flexibility in creating the exact look you need to match your aesthetic goals.

Speaker installation takes only moments using the key slots located on the back of the speakers. Simply use the included hollow wall anchors for a hassle free art speaker mounting experience.

Customizable beauty is just a portion of the Image III speakers’ value. Audio performance is impressive, with smooth high-frequency response, solid bass extension, excellent imaging and 170 degree dispersion.



Frequency Response:

40Hz to 20kHz (see Figure 1)

Power Capacity:

120 watts RMS

60 watts minimum recommended power

Sensitivity:

80 dB (1 watt / 1 meter)

Driver Components:

High frequency:

1” (25 mm) neodymium motor

Low-frequency:

1” (25 mm) voice coil, 8” (203 mm) woofer, Ceramic 20 oz. (622 gr) magnet

System Impedance:

8Ω nominal

Polar Dispersion:

170 degrees vertical and horizontal planes

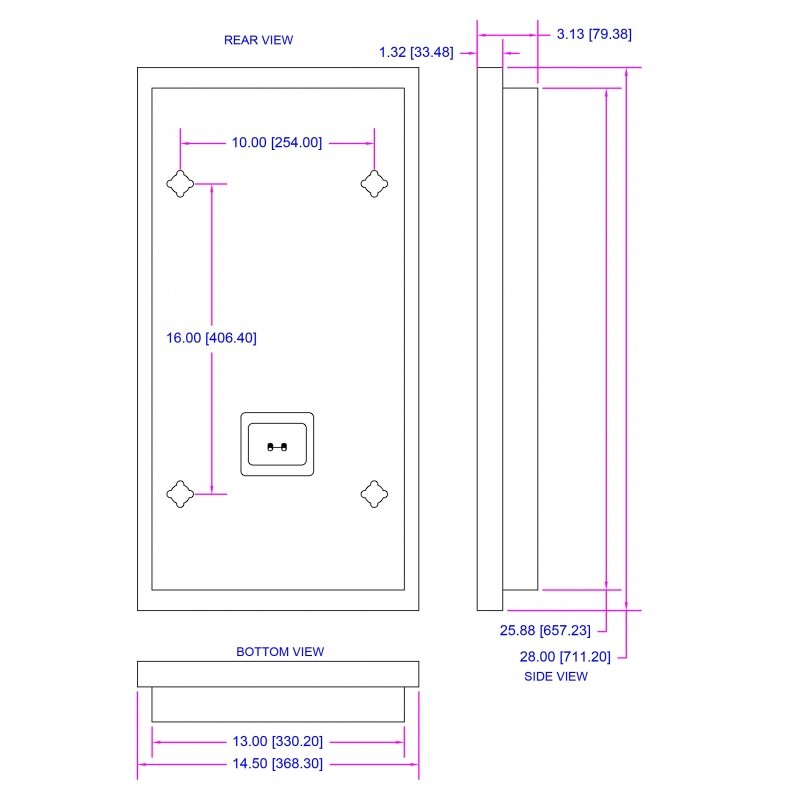

Dimensions:

Width: 14-1/2” (368 mm)

Height: 28” (711 mm)

Depth: 3-1/4” (83 mm)

Product Weight:

23 lbs. (10.4 kg.) each

Shipping Weight:

50 lbs. (22.7 kg.) each

27 lbs. (12.2 kg.) each

Included Accessories:

Hollow Wall Anchors

Mounting Screws

Terminal Wrench

Optional Accessories:

Image Wrap™ Custom http://stealthacoustics.com/products/stealth-cover-art/

Stealth CoverArt™

Stealth Acoustics SA2400 2-Channel Amplifier

Note: All specifications subject to change. CoverArt™ and The Trilogy™ available in the USA and Canada only.



Recommended Applications

TV Sound Improvement
Background / Foreground Music

Performance

120 Watts RMS
40Hz to 20kHz (see Figure 1)
60W minimum recommended power

Finish Options

1. Satin White
2. Image Wrap™
3. The Trilogy™
