Karan PHONOb
Nowy produkt

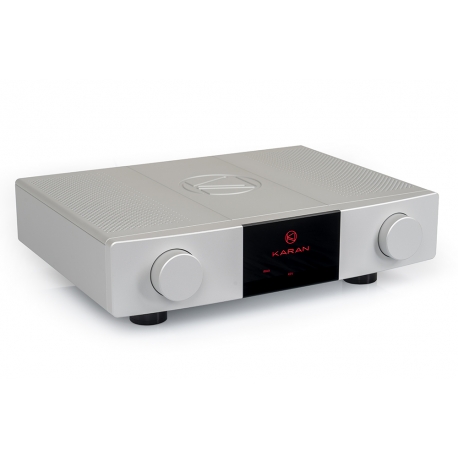

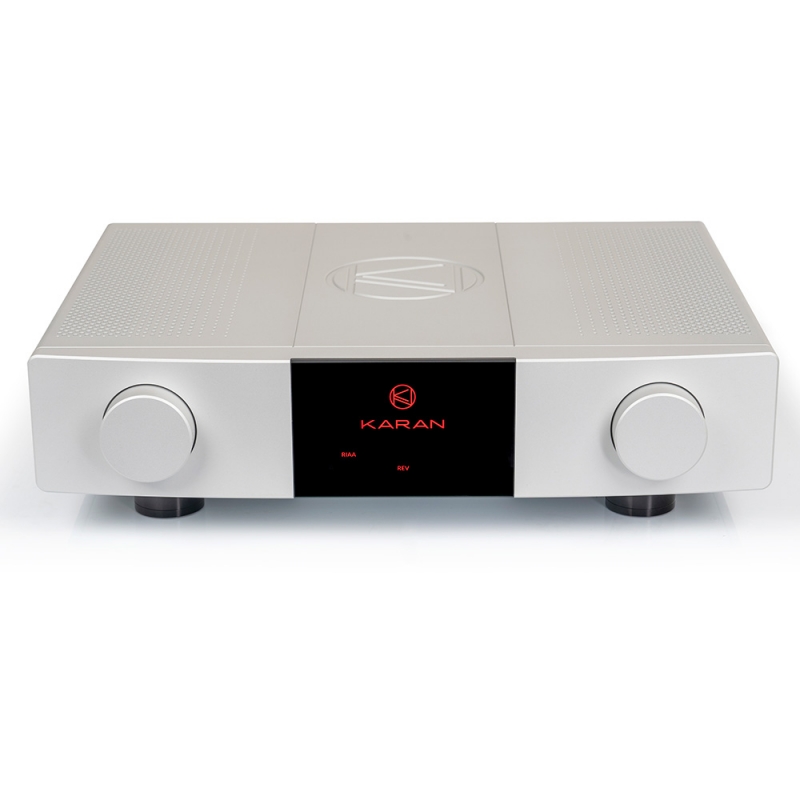

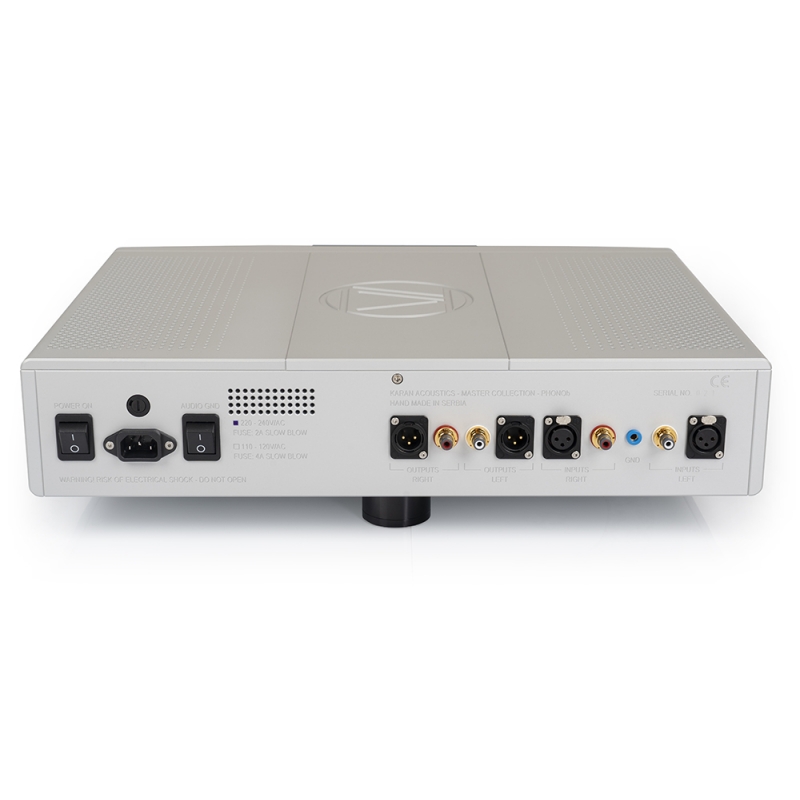

Karan Acoustics Master Collection PhonoB - Przedwzmacniacz gramofonowy, MM/MC, zbalansowany.
| Głębokość: | 390 mm |
| Wysokość: | 141 mm |
| Szerokość: | 504 mm |
| Masa: | 16.6 kg |
| Pasmo przenoszenia: | 20 Hz to 20 kHz |
| Zniekształcenia THD | 0.003% |
| Masa produktu zapakowanego | 26.5 kg |
| Technical specifications: | |
|---|---|

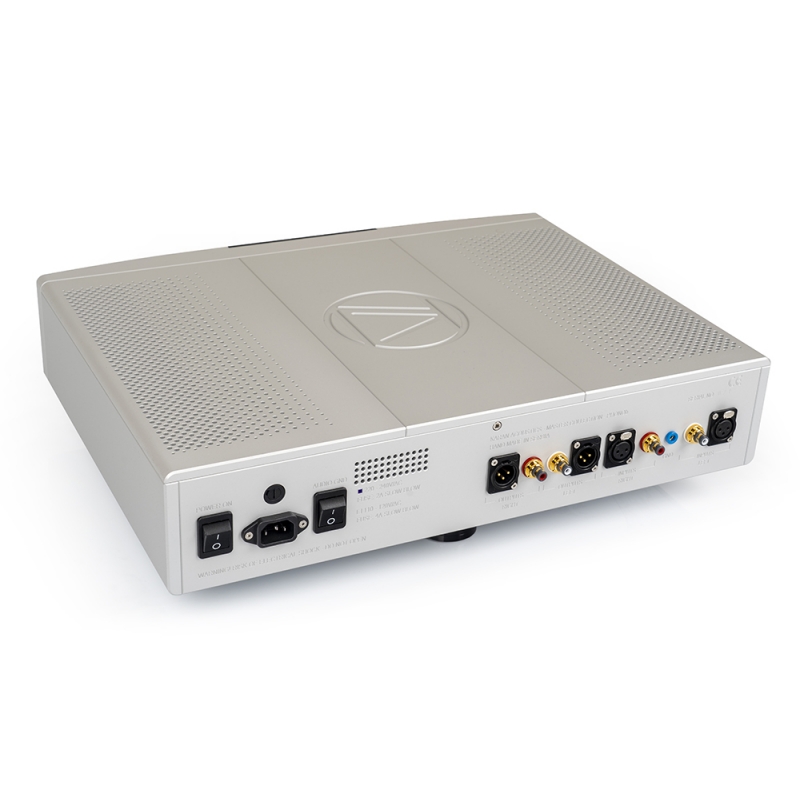

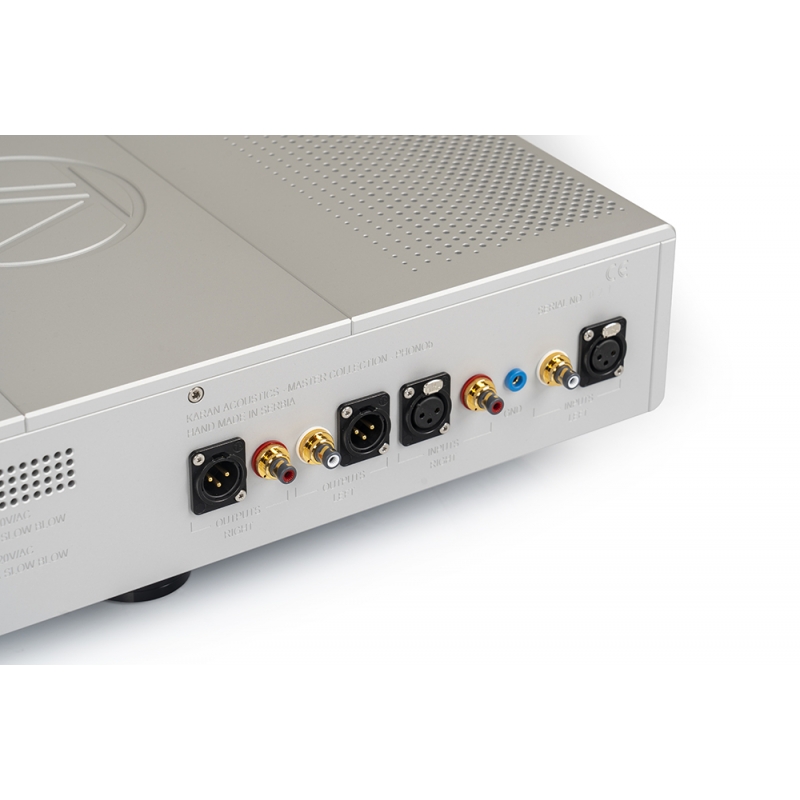

| Phono inputs: | 2 (1 x Single-Ended RCA + 1 x Balanced XLR) |
| Line outputs: | 2 (1 x Single-Ended RCA + 1 x Balanced XLR) |
| Phono EQ settings: | RIAA: +/- 0.1dB EMI: +/- 0.15dB DECCA: +/- 0.15dB COLUMBIA: +/- 0.15dB TELDEC: +/-0.1dB |
| Output impedance: | 90 Ohm |
| Output level: | 1.55 V/RMS (nominal) 18.0 V/RMS (maximum / balanced / 600 Ohm load) |
| Gain: | from 48 to 71dB (multiple internal adjustments available, please see GAIN SETTINGS page of this manual) |
| Frequency response: | 20 Hz to 20 kHz, +/-0 db; (1.5 Hz to 1 MHz, -3 dB) |
| Distortion: | THD 0.003% (Full output, 20Hz to 20kHz) IMD 0.003% (Full output) |
| Speed: | Rise and Settling time < 450 ns Slew rate 1.500 V/us (Amplification stages) |
| Signal to noise ratio: | > 90 dB (Phono MM), > 81 dB (Phono MC) |
| AC voltage: | 115V or 230V (nominal line voltage) |
| AC voltage range: | +/- 10% (from nominal line voltage) |
| Power consumption: | 60 W (maximum) |
| Warranty: | 5 years, parts and labor |
| Net dimensions: | 504 x 141 x 390 mm (whd); 19.8 x 5.6 x 15.3 inch (whd) (Main control unit) |
| Net weight: | 16.6 kg / 36.3 lbs (Main control unit) |
| Package dimensions: | 645 x 255 x 516 mm (whd); 25.5 x 10.2 x 20.4 inch (whd) (Main control unit) |
| Package weight: | 26.5 kg / 57.9 lbs (Main control unit) |
