Stealth Acoustics SA2400 - Wysokonapięciowy wzmacniacz 2 kanałowy
Ten produkt nie występuje już w magazynie
Data dostępności:
The Stealth Acoustics SA2400 is high-current two-channel amplifier with powerful built-in digital signal processing functions suitable as a low distortion power source for Stealth Acoustics speakers, Stealth subwoofers, or other un-powered speakers and subwoofers. Intended for distributed audio, fixed installations, or home theater applications, the SA2400 mounts using the supplied removable rack ears in a standard 19” (482 mm) equipment rack requiring only two RU spaces (3-1/2” – 89 mm), or may stack with other free-standing components. The SA2400 delivers a solid 350 watts per-channel into an 8Ω load and 460 watts per-channel into 4Ω.
The SA2400’s internal DSP functions may be programmed for each channel independently or together and include 11 bands of fully-parametric EQ, variable High and Low Pass filters with selectable slopes, fully-programmable limiter stage and delay functions. All parameters may be programmed using front panel controls or via a USB connected computer utilizing Stealth Signal Management System software (SSMS). Ver 1.0.6 – Download Here

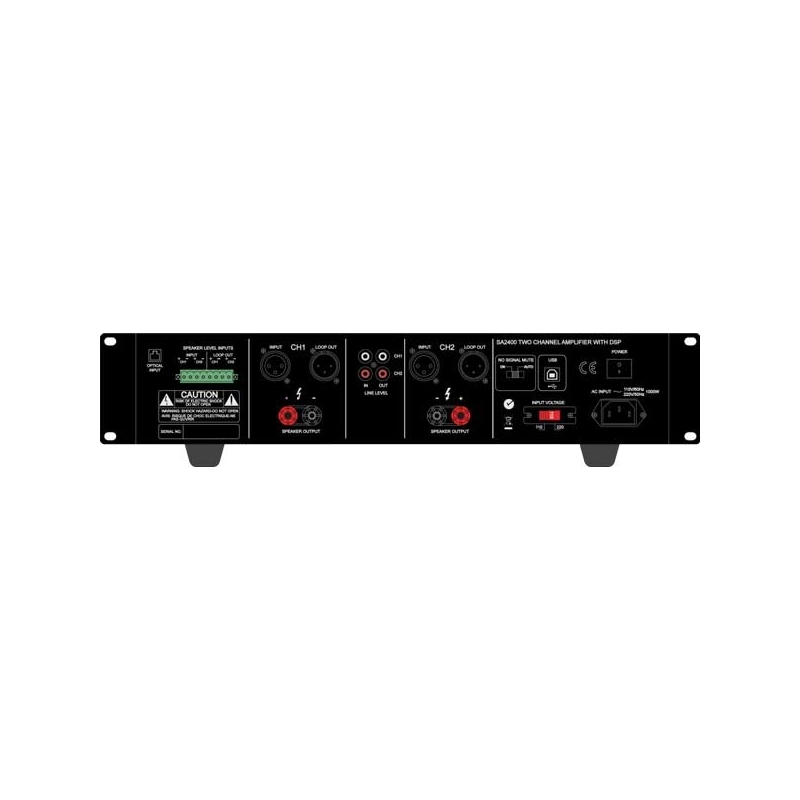

For maximum flexibility integrating into any audio system, the SA2400 includes RCA unbalanced line level, balanced XLR line level, and phoenix speaker level inputs for each channel, all with “pass-through” output connectors. The speaker level input/pass-through connections allow the SA2400 to feed directly from full-range speaker lines, anywhere in the system. A stereo optical input is provided for connecting digital sources to the amplifier. Inputs may be mapped to either channel and may be “mono-summed” via programming. The SA2400 amplifier output connections are via 5-way binding posts designed to accept heavy gauge speaker wires.
A selectable automatic turn-on feature activates the amplifier only when audio signals are present. Quiet 8-stage cooling fans automatically engage as required. The front panel includes direct master volume and menu access controls as well as an LCD display window and dual clip indicators. 115VAC and 230VAC input line voltages are easily selectable via a rear panel switch. The Stealth Acoustics SA2400 amplifier is covered by a 2-Year manufacturer’s warranty.
(2) RU spaces: 3-1/2” (89mm)
Product Specifications
350 watts @8Ω < 0.05 THD
460 watts @4Ω < 0.05 THD
20Hz-50kHz (+1/-3dB)
< 0.05 @ 460 watt @4Ω / 1 kHz
>105 dB / A weighting 20Hz-20kHz
-1dBV for output of 312.5W / 8Ω
36 dB / 8Ω
>85dB
8Ω Nominal – 4Ω Minimum
38 lbs. (17.2 kg)
1080 watts @115V / 8 Ω (100Hz sine wave – both channels driven)
1560 watts @115V / 4 Ω (100Hz sine wave – both channels driven)
Typical audio power current draw is 1/8 to 1/4 Full Output Current Draw, depending on source material / load
Full short circuit, open circuit, thermal, ultrasonic and RF protection
On/Off muting with auto volume ramp up on power-up
DC fault power supply shutdown
Fixed high-pass filter @18Hz
Stable into reactive or mismatched loads
Phoenix connector speaker level inputs / outputs
RCA unbalanced line level inputs / outputs
XLR balanced line level inputs / outputs
Optical Digital input
(stereo TOS – routable, no pass through output)
5-way binding posts (each channel)
Input level readout Programming /
parameter display Dimming function (3 levels)
For Computer programming of DSP features via SSMS software
Switch selectable “On” or “Auto”
Automatic – 8 speed stages
