PureLink PT-MA-HD42UHD

Stan techniczny: Nowy produkt

PureTools PT-MA-HD42UHD - Przełącznik matrycowy HDMI 4x2 4k 18gbps ze skalerem i de-embedderem audio

Więcej szczegółów

Więcej informacji

Obsługa HDCP2.2 oraz HDR10
Rozdzielczość max: 4K@60Hz, 4:4:4 (18Gbps)
Wejścia: 4x HDMI; 1x LAN, 1xRS232, 1x IR;
Wyjścia: 2x HDMI; 1x S/PDIF; 1x stereo audio
Sterowanie: RS-232, IR, przyciski, TCP/IP, WebGUI, EDID
Zarządzanie EDID
Intuicyjny graficzny interfejs sterujący (WebGUI);
Wbudowany skaler 4K w dół do 1080p (wyjście HDMI 1)
Kanał zwrotny audio (Audio Return Channel – ARC – wyjście HDMI 2)
Możliwość ekstrakcji audio (analog i digital)

4x2 4K 18Gbps HDMI Matrix Switcher with Downscaler and Audio De-Embedding

The PT-MA-HD42UHD is a 4x2 HDMI 2.0 presentation matrix switcher with dual HDMI matrix outputs. The matrix switcher distributes four HDMI inputs to two HDMI matrix outputs with full HDMI 2.0 support. The S/PDIF and 3.5mm audio outputs are ready for dual audio de-embedding from HDMI incl. ARC support. The HDMI outputs also feature a 4K to 1080p downscaling functionality. The PT-MA-HD42UHD features great control flexibility via web, RS232, IR as well as smart EDID management.

The PureTools Series - High Quality AV Products for Commercial Applications

- 4x2 HDMI Presentation Switcher with 4 HDMI inputs to 2 HDMI matrix outputs

- HDMI 2.0b for resolutions up to UltraHD / 4K 60Hz (4:4:4) incl. HDR10

- HDCP 2.2 compliant

- 4K to 1080p downscaling

- Digital and analog audio de-embedding for HDMI audio extraction incl. ARC

- RS232, IR and TCP/IP control

- Smart EDID management

Features
Matrix-switching of 4 HDMI signals to 2 HDMI outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR
Downscaling at the first HDMI output, ARC at the second HDMI output
Audio de-embedding via Toslink and 3.5mm jack
Control via web-GUI, RS232 and IR, firmware updates via USB

Logistics Information
Product 1. Net Weight in Kg	0,61
Product 1. Gross Weight in Kg	1,16
Product 1. Length in cm	20
Product 1. Width in cm	10
Product 1. Height in cm	2,85

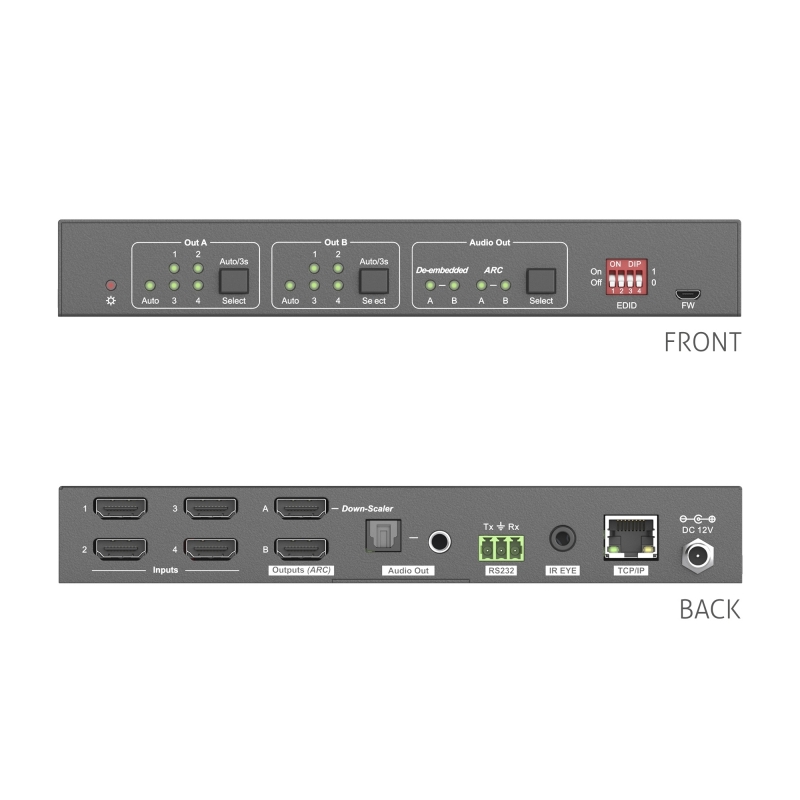

Connections
Input connector(s)	4x HDMI, 1x RS232 (3-pin Phoenix), 1x IR (3.5mm Jack), 1x TCP/IP (RJ45)
Output connector(s)	2x HDMI (1x Downscaling / 1x ARC), 1x S/PDIF (Toslink), 1x Stereo Audio (3.5mm Jack)
